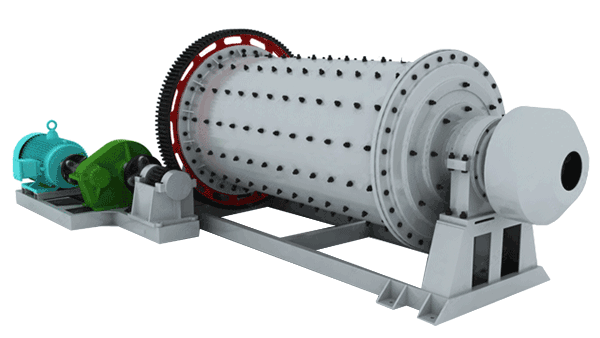

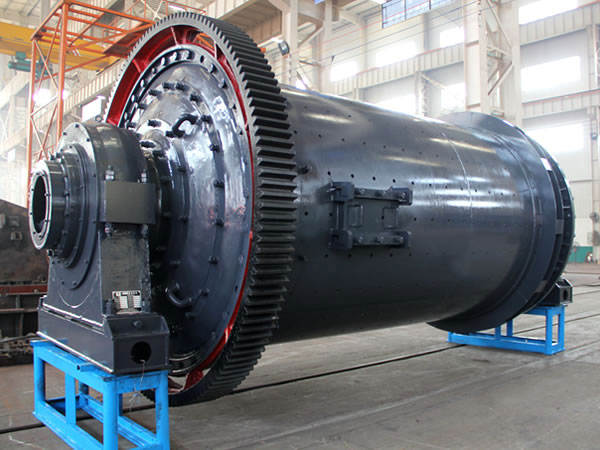

Chinaware Ball Mill

Chinaware Ball Mill

Key Specifications

Feeding capacity : 0.05-15 tons per time

Reference Power : 2.2-75kw

Application : silicate,refractories, fertilizers, black and non-ferrous metal, ceramics and other industries.

Email us: vip@zdzg.com
Get Quotation Inquiry Online

Product Introduction

1.Chinaware Ball Mill is mainly used for the mixing and grinding of materials, and the fineness of the final products is even, thus saving motive power. It can be used in both dry grinding and wet grinding.
2.This machine can adopt different lining board types according to the production need to satisfy different needs of the customers. The fineness of the grinding process is automatically controlled by the grinding time.
3.This machine is started by auto-transformer to reduce the starting current. This machine can adopt two types of structure: unitary and independent type.
Advantages

1.Small investment,unique structure.

2.Energy and electricity conservancy.

3.Easy and simple operation.

4.Safe use, stable and reliable performance.

5.Suitable for mixing and grinding common and special materials.

6.According the proportion and hardness of the materials and the output, the customers can choose suitable machine type and the types of lining plate and grinding media.

Technical Data

Model Feeding
capacity
（t/time）		 Shell
rotation
speed
（r/min）
600×700 0.05 50
800×600 0.075 42
900×1200 0.2 38.5
1300×1500 0.5 33
1500×1800 1.2 28.5
1800×2000 1.5 24
2600×2800 5 16.5
3000×3800 10 14.5
3200×4600 15 13.5
