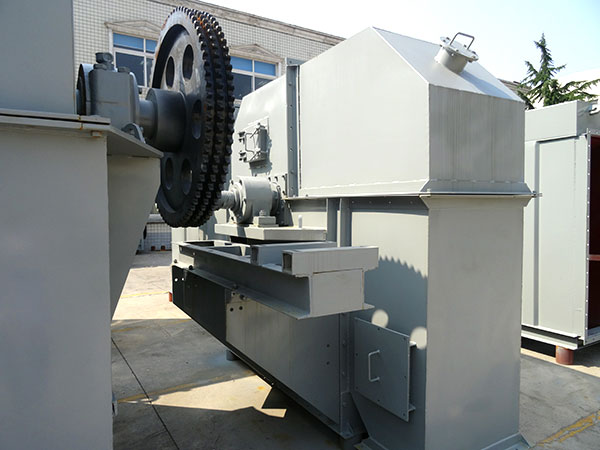

Bucket Elevator

Product Introduction

1. With significant advantages of Large amount of delivery, high lifting height, smooth and reliable operation, long life, vertical bucket elevator meets thestandards of JB3926 ---- 85 (the standard equivalent of reference to the international standards and the safety of the aircraft, Foreign advanced standards), and traction ring chain meets with MT36 ---- 80 " high-strength round chain used in mining".

2. The hoist is suitable for conveying powdery, granular and small pieces of non-abrasive and abrasive materials such as coal, cement, stones, sand, clay, ore, etc., because the traction mechanism of the hoist is circling the chain,thus allowing the delivery of higher temperature materials.

Advantage of Bucket Elevator:

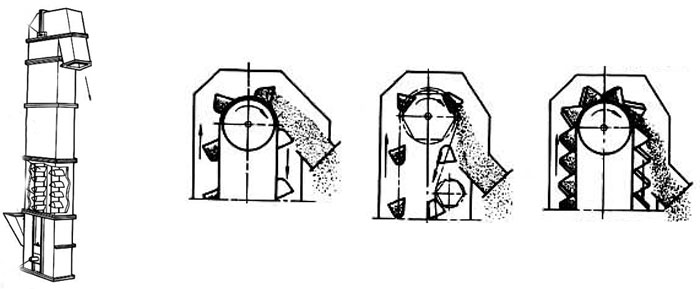

1. With small drive power, inflow feed, induced discharge, large-capacity hopper-intensive layout,

there is no material backing and material recovery phenomenon during material lifting. so inefficient power is less.

2. With wide ranges of lifting material, Bucket elevator can lift general powder, small granular materials, but also lift the larger-strength grinding materials as a result of  good sealing, the environment Less pollution.

3. With advanced design principles and processing methods, bucket elevator achieves reliable whole machine running with trouble-free time more than 20,000 hours

which makes a higher lifting height.

4. Low reactive power and long service life for adopting intensive layout of combing “flow-in” feeding and hopper with large capacity with “guided”discharging.

Designed to ensure that the material little scattered during the feed and unloading, it reduces mechanical wear.

Technical Data

Technical parameters of ring chain bucket elevator

Technical parameters of wire belt bucket elevator

Plate chain bucket elevator
