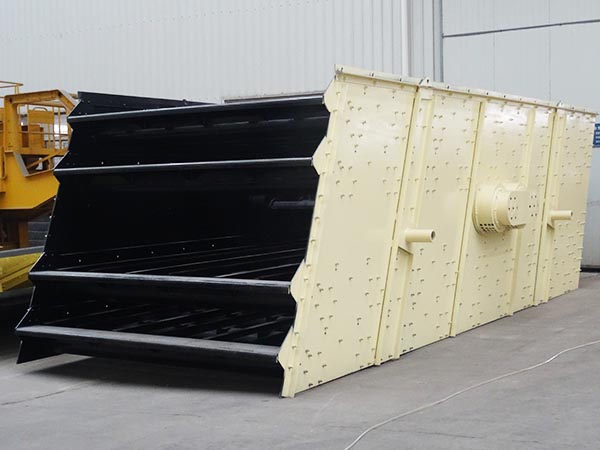

Circular Vibrating Screen

Circular Vibrating Screen

Key Specifications

Production capacity: 8-800m³/h

Vibrating power: 800-970r/min

Max. feeding size: 400mm

Material: River gravel, granite, basalt, iron ore, limestone, calcite, quartz, diabase, and etc.

Email us: vip@zdzg.com
Get Quotation Inquiry Online

Product Introduction

The circular vibrating screen is a high-efficiency and new-type vibrating screen featured by circular vibration and multi-layers This type of vibrating screen is specially designed for screening material stone of a quarry, and widely used for product classification in mining, building materials, transportation, energy, chemical products industries. So, it’s a kind of ideal equipment used in the crushing and screening unit. If the screen with small boring diameter is installed, the wet and sticky material can not be screened unless the water spraying method is used.

Features of circular vibrating screen

(1) It uses cylinder-type eccentric shaft and eccentric block to make strong vibrating force.
(2) Beam is connected to the main body with bolts, has the feature of high strength.
(3) The side plate of the screen box use the steel which make the boiler, the steel have high strength and strong impact-resistance.
(4) It adopts the structure of small amplitude, high frequency, large obliquity to make the screen with high efficiency, large handing capacity, long life span, low consumption, and little noise.

Advantages of circular vibrating screen

1. Use eccentric block to produce strong exciting force.
2. Small amplitude, high frequency, large obliquity structure.
3. High efficiency, large handling capacity, long life span, little noise.
4. Less electricity power consumption.
5. Cross beam and the main body of the screen are connected with high strength screw bolts,so they have simple structure and easy maintenance.

Technical Data

Model Sieve Layer Sieve Area
(㎡)		 Processing capacity
(m³/h)
2YK1230 2 7.2 12-78
3YK1230 3 10.8 13-80
2YK1237 2 8.88 15-86
3YK1237 3 13.32 16-90
2YK1548 2 14.4 22.5-162
3YK1548 3 21.6 22.5-162
4YK1548 4 28.8 22.5-162
2YK1854 2 19.44 32-312
3YK1854 3 29.16 32-312
4YK1854 4 38.88 32-336
2YK2160 2 25.2 50-475
3YK2160 3 37.8 50-475
4YK2160 4 50.4 50-497
2YK2460 2 28.8 65-550
3YK2460 3 43.2 70-620
4YK2460 4 57.6 80-680
2YK2866 2 31 70-650
3YK2866 3 47 80-700
4YK2866 4 62 90-750
2YK2873 2 39.2 70-680
3YK2873 3 58.8 80-720
4YK2873 4 58.8 90-950

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
