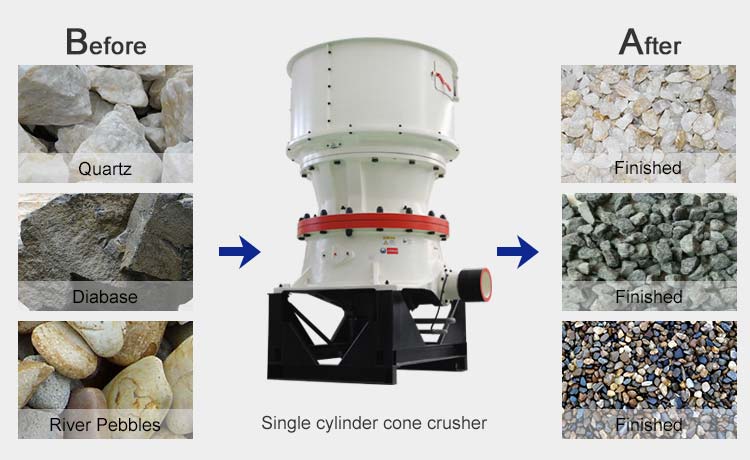

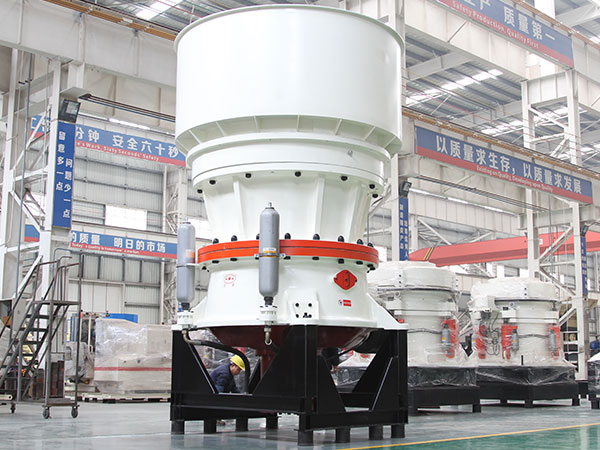

Single-Cylinder Hydraulic Cone Crusher

Product Introduction

2. Through a single hydraulic cylinder lifting and dropping the cone, the hydraulic cone crusher realizes various functions such as the adjustment of the discharge port,the clearance of the cavity, the over-iron and the overload protection. Configuration Intelligent control system for throat realizes production process controlling and operation optimization function. The crusher can be widely used in all black,nonferrous metal and nonmetal mines and industrial circle.

The performance characteristics:

1. Single cylinder cone crusher is supported on both ends of the main shaft and can withstand greater crushing force and larger stroke.

2. The special crushing cavity with the principle of laminate is equipped as a result of a higher crushing efficiency.

3. With design of combining broken stroke, speed, and crushing cavity shape, single-cylinder hydraulic cone crusher makes the machine moving cone big end diameter of the same case, being higher than the production of the old spring cone break 35% ~ 60%.

4. By replacing the cone can realize medium and fine crushing of various cavity shape

5. The hydraulic and lubricating system of dual insurance control can ensure the overload protection and good lubrication of the bearing.

6. The advanced hydraulic technology realizes overload protection and hydraulic adjustment discharge port, and simplifies the crusher structure and reduces the weight.

Technical Data

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
