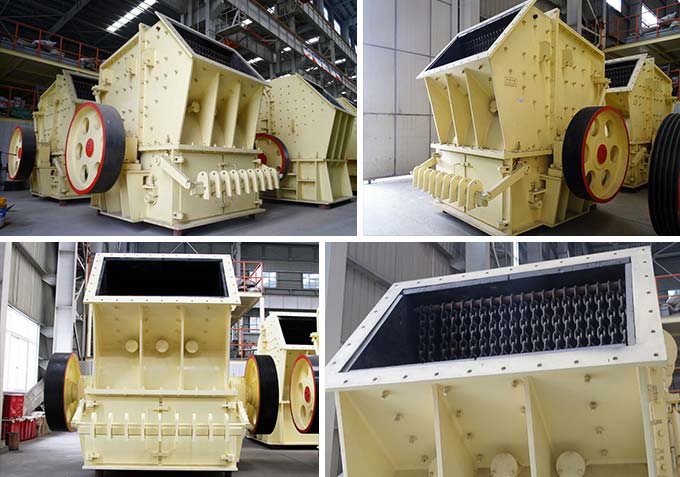

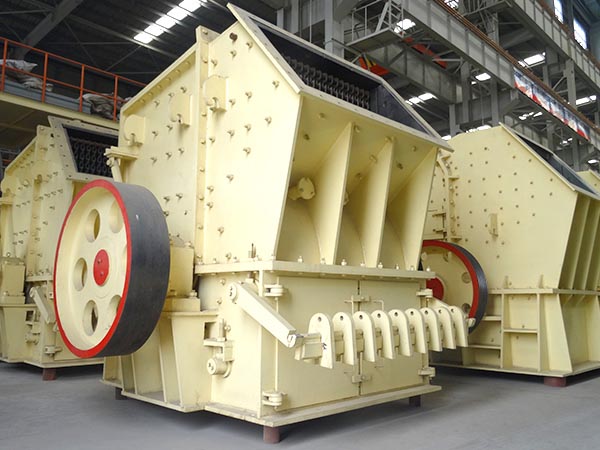

Single Stage Hammer Crusher

Product Introduction

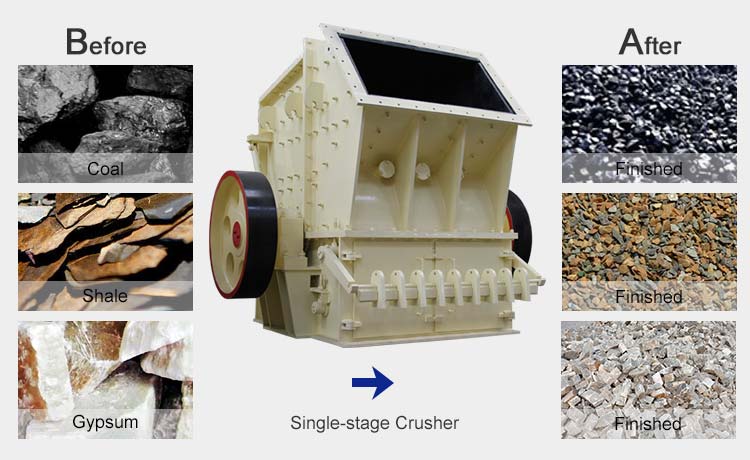

1. The single stage hammer crusher can crush materials with maximum particle size of 600-1800 mm to particles of 25 mm or below.

2. It is mainly used to crush fragile materials with medium hardness and little moisture like limestone and rocks in the building material, mining and chemical industries.

3. The compressive strength of the materials is less than 140 Mpa.

4. The single stage hammer crusher features with high ratio of crushing, low power consumption, small area occupation and simple maintaining.

Advantages of single stage hammer crusher

1. The single stage hammer crusher has big crushing ratio with maximum feeding particle size of 1.3-1.5 m.

2. The discharging particle size can be adjusted between 3-150 mm.

3. The discharging materials are refined with good aggregate particle shape and the powdery materials are no more than 20%.

4. The original second level or third level crushing process is reduced to just one stage, thus simplifying the processing.

5. Because of the low supporting power of the system, the running cost is low.

Technical Data

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
