Stone Crusher

Stone Crusher

Key Specifications

Production capacity: 5-2200t/h

Feed opening: 150×250-300×1300mm

Feeding size: 125-1500mm

Material: limestone, granite, basalt, cobble, aggregate, gravel, quartz, basalt, dolomite, marble,etc

Email us: vip@zdzg.com
Get Quotation Inquiry Online

Product Introduction

1.The stone crusher is the crushing machine with the particle size greater than 3 mm in the discharge and more than 50% of the total discharge volume. It is widely used in mines, smelting, building materials, roads, railways, water conservancy and chemical industries.
2.The crushing operation is usually divided into coarse, medium and thin pieces according to the size of feeding and discharging. The commonly used sandstone equipment has jaw crusher, mobile crusher, impact crusher, cone crusher, compound crusher, hammer crusher, roller crusher, etc.

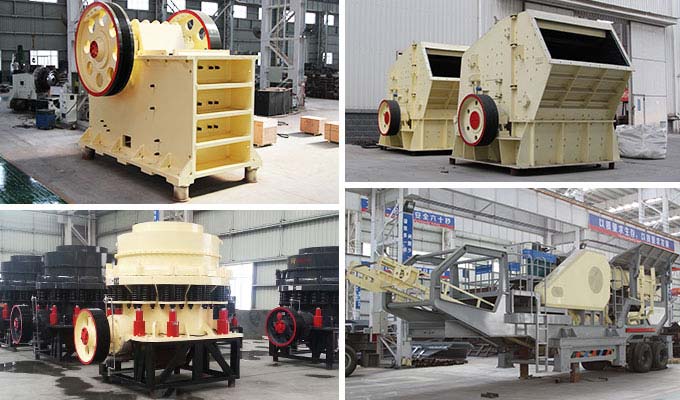

Classification of stone crusher

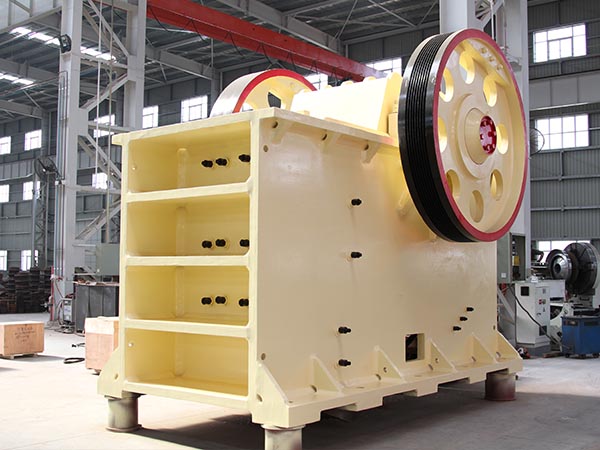

1. Jaw crusher

Jaw crusher working principle: It is using surface material extrusion and bending effect, when two jaw close to the material being broken, when two jaw leave less than the material of discharging mouth piece of coarse crushing or discharged from the bottom of gravel mechanical crushing all kinds of hardness materials.

Application: simple structure can crush hard materials, reliable work and many other advantages are widely used in mineral processing, building materials, silicate and ceramic industries.

2. Impact Crusher

Impact crusher working principle: With the impact of the board hammer and the rebound effect of the impact board, the material is subjected to repeated impact and broken crushing machine. The rotor in the backstage breaks even more momentum, crushes harder materials and reduces power consumption relative to hammer crusher (hammer is suspended).

Advantages of impact crusher: impact crusher has less parts and high utilization ratio than hammer crusher.

3. Cone Crusher

The cone crusher is used in the crushing of various kinds of hard ores, which can be widely used in mining, metallurgy, steel resistant, cement, coal, glass, ceramics, electric power and other industries. It is especially suitable for the crushing of hard limestone, dolomite, granite, basalt and other artificial sand or highway pavement. In the mechanism construction of sandstone, it is widely used in various metallurgical slag crushing, and has high yield results than other types of crushers.

4. Roller Crusher

Roller crusher is used for ore dressing, chemical, cement, refractories, abrasives, building materials in the industrial sector and finely various kinds of high, medium hardness ores and rocks, especially in the building materials industry produces melon meters and mung bean sand stone and other products, it’s more excellent than general broken mechanical.

5. Mobile Crusher

Mobile crusher is a new rock crushing machine. It is the best choice for the users because the mobile crushing station is low cost and highly efficient.
It is is widely used in mine, building material, highway, rail way and hydropower industries, etc. The crushing and screening process can be finished at one time to produce the required size. It could crush hard and medium hard stone, ore and construction wastes.

Technical Data

Model Feeding opening size(mm) Max.Feeding size（mm） Capacity (t/h)
HD72(57) 460×720 425 50-120
HD86(69) 580×860 500 60-280
HD98(751) 680×980 630 110-410
HD110(912) 850×1100 750 170-550
HD125 950×1250 900 280-750

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
